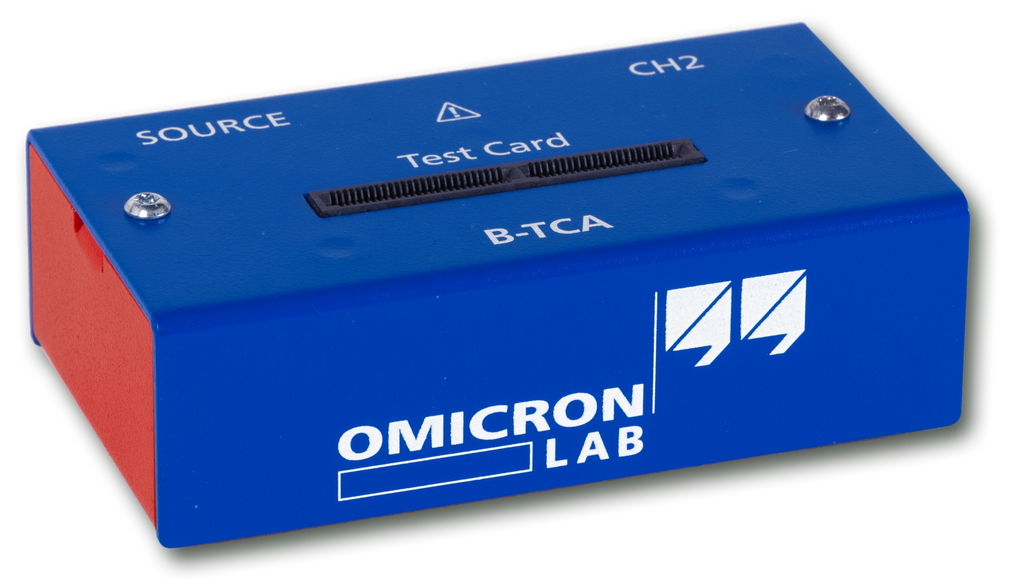

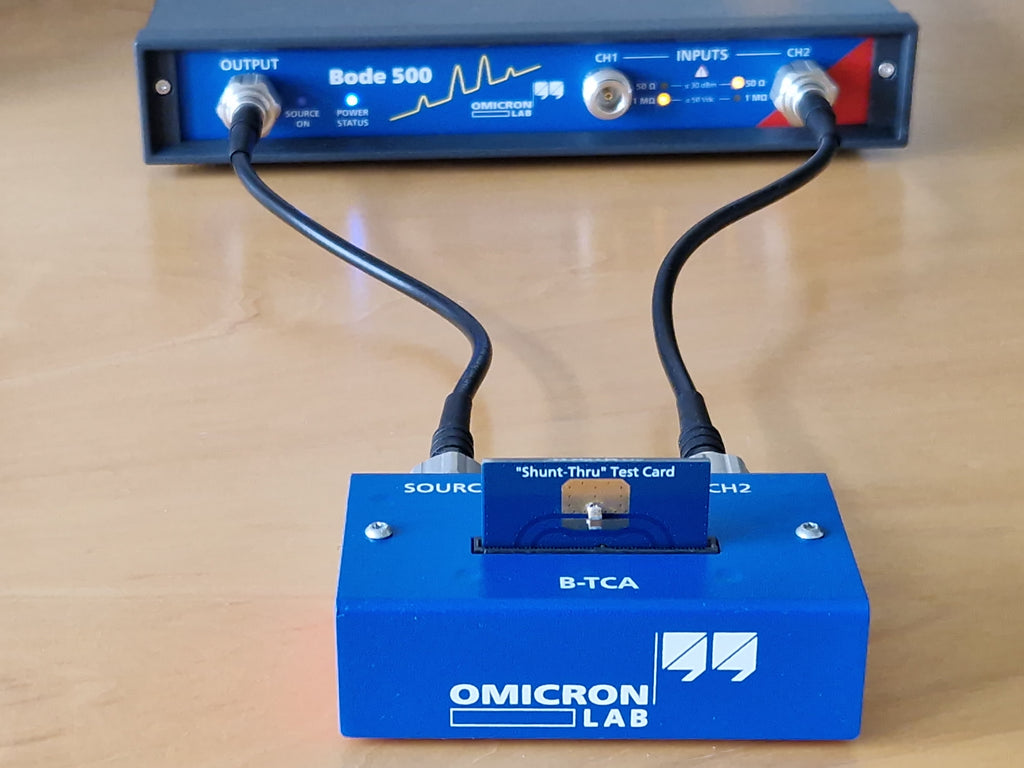

Test fixture for simple impedance and S-Parameter measurements of surface mount components over a wide frequency range up to 450 MHz.

Key features

• Optimized for impedance measurements of passive electronic SMD components
• Measurement of complex impedance at frequencies up to 450 MHz
• Enables One-Port, Shunt-Thru and Series-Thru measurements
• Simplifies S-parameter measurements on passive components

Connectors

• Source, CH2: N connector (female, shield connected to housing)
• Test card interface: PCIe edge-card connector
• DUT must be soldered to test cards

Scope of Delivery

• B-TCA test card adapter
• Printed User Manual
• 2x N-N cable 30 cm (m-m)
• 2x N-BNC cable 50 cm (m-m)
• Calibrator for each setup (Shunt-Thru, Series-Thru, One-Port and Shunt-Thru with Rs)
• 8x test card for each setup (Shunt-Thru, Series-Thru, One-Port and Shunt-Thru with Rs)
